New Rühle Injecting Machines - HighTech injection for every need

Description

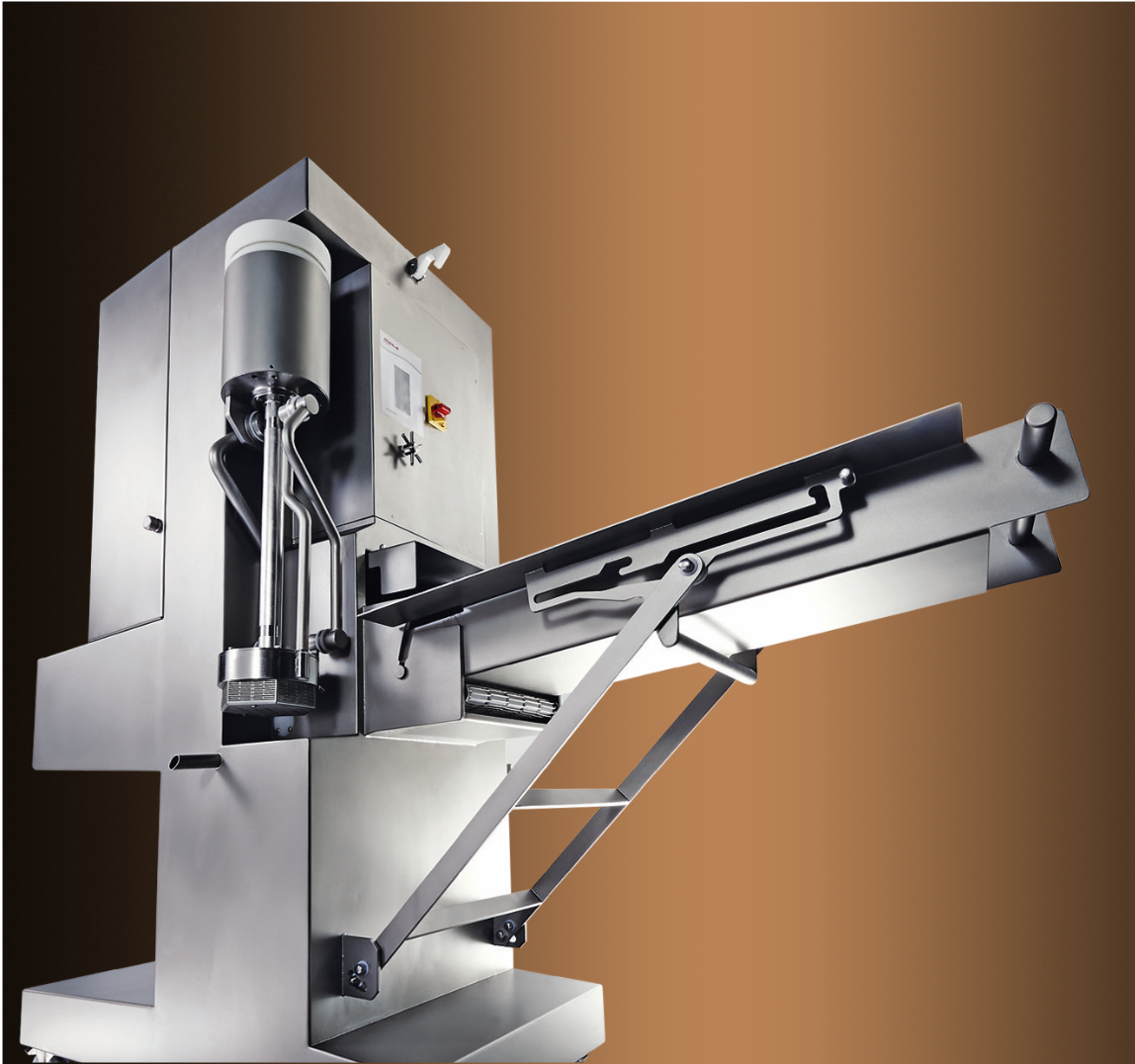

A versatile rotary pump - Built as an immersion pump, this apparatus is genuinely versatile. The pump works at low pulsation and is self-priming, dry-run safe and self- draining up to the last drop. The quick-suctioning geometry of the pump wheel enables air removal, thus improving the brine. Consequently, full pressure is available at the needles from the first stroke in the selection range of 0.3 to 4.2 bars, which in turn enables accurate injection volumes from 3 % to 80 %.

Single-needle control - As soon as a needle encounters the surface of the meat, the liquid intake opens. If the needle hits bone, the liquid intake closes to prevent too much liquid accumulating at one location. When a needle pierces the meat without meeting bone resistance, it injects liquid until the needle exits the underside of the meat. In this way, the brine is evenly distributed throughout the piece of meat.

Superior hygiene - Every part of this machine has been designed for fast cleaning. There are no hard - to - access corners. Great consideration has also been given to hygiene areas that are not visible. The curing injector drains completely following operation or cleaning. The machine can be cleaned, dried and easily stored away in no time.

Smart operating aids - An inlet feed ramp set at an angle serves as a chute for tipping in meat. When positioned flat, the ramp can be used as a work surface. For example, bins can be deposited on the surface to feed the meat onto the belt with minimum effort. The machine is built to accommodate standard trolley height, and the operating controls are easily within reach.

Perfect brine by means of jet pumps - A strong jet leads to perfectly seasoned brine in just one minute. It distributes all the spices and ingredients equally in the water and dissolves them perfectly. A weaker jet maintains the result of mixing during the injection process, keeping the spices and ingredients evenly distributed throughout the curing cycle. As the spices are kept constantly suspended, the meat is uniformly seasoned.

Softer for greater protein extraction - Fine angled blades cut right through the meat with surgical precision. A suspension system for the blades enables processing of bone – in – meat parts. During the process of cutting through the fibers, the meat structure is softened, activating actomyosin, the meat’s own tenderizer. The result is increased fluid retention and tender meat.

Specifications

Machine length: 1.228 - 2.072 mm
Connected load: 400 V, 6.1 kW, 16 A
Machine width: 911 mm
Performance: 3.000 kg / h
Machine height: 1.890 mm
Machine weight: 440 kg
Pressure: 0.3 - 4.2 bar
Feed inlet height: 280 mm
Rows of needles: 3
Belt forward feed: 30 / 45 / 60 mm
Injection rate: 24 / 48 per minute
Belt width: 360 mm
Injection volume: 3 - 80 %
