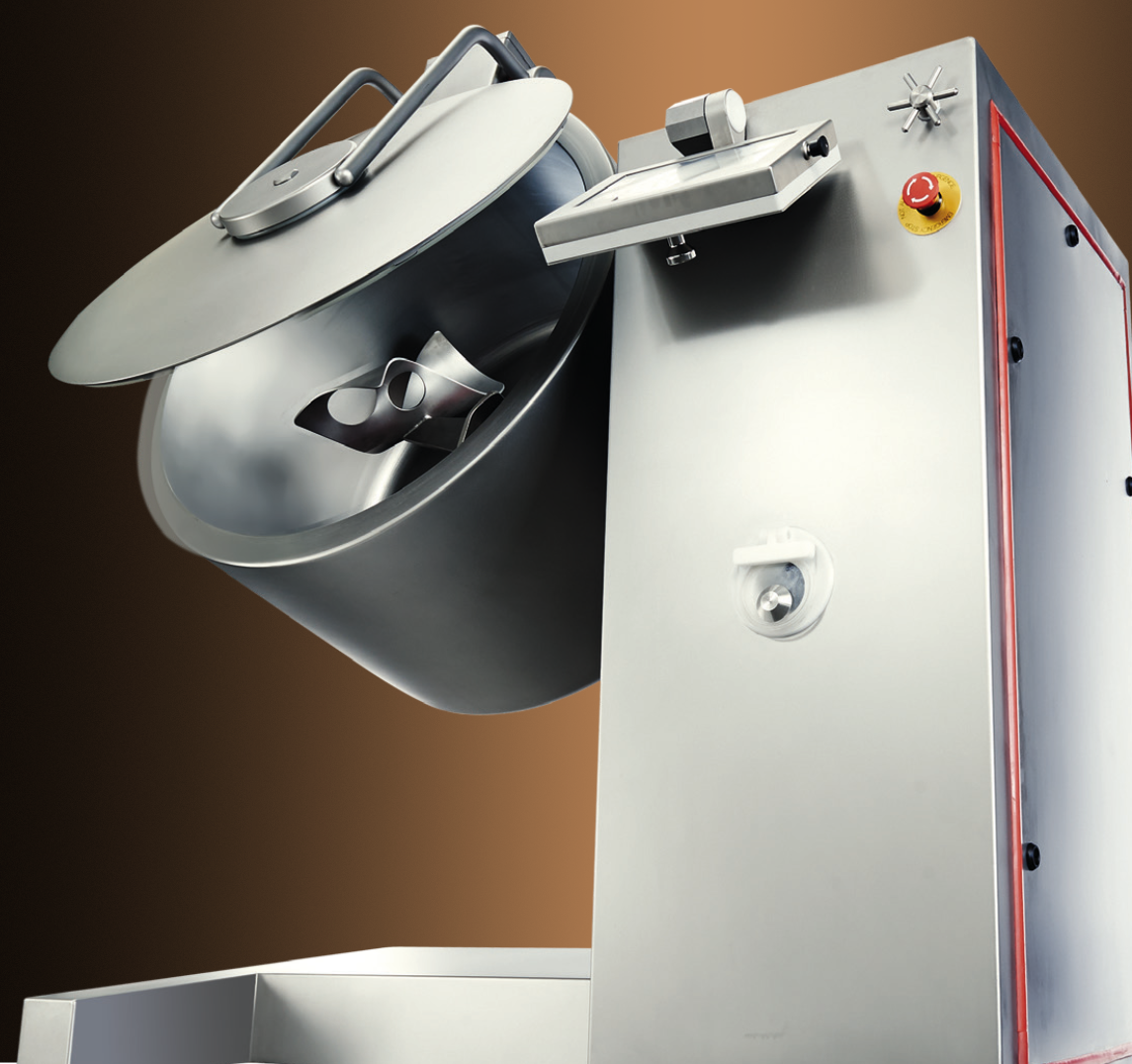

New Rühle Mixing and Tumbling Machines - Powerful mixing and intensive kneading with real HighTech

Description

Mixing and kneading - The container can be tilted to different angles. The large - diameter container enables good rolling of the mixing product. The rotational speed of the mixing arm ranges from 0 to 50 rpm. An arm with a large working surface, but no edges or angles, does the rest.

Hard working and perfect scraping - The outer contour of the mixing arm is designed for gentle handling and processing of delicate products. A rotating scraper keeps all container surfaces perfectly clean. Everything remains within the mixture and nothing is left unprocessed.

Flexible programming - Twelve parameters are easily accessible at any stages. Recipes can be created intuitively and everyday tasks are easily facilitated by a smaller control interface. All made possible by perfect software and reliable hardware.

Complete and easy emptying - There is so much space under the processing container that Euro tote bins of any size can be stacked there. Even a 200 l standard trolley can fit comfortably. The container can be tilted, and the lid opened without any spillage. Finally, the simultaneously rotating scraper arm ensures complete emptying of the container.

Accurate machine positioning - Automated drives enable the machine to change its working position randomly. The result is process intensity that is perfectly adapted to the product mix. These automatic aids make filling and draining very easy.

Precise temperature control - The powerful cooling unit inserts the coolant directly into the perfectly insulated container. This enables very fast temperature regulation and very precise adaptation to all temperature requirements. Optionally, the cooling unit can also be run as a heat pump and supply heat up to 80 °C.

Specifications

Machine length: 1.357 mm
Connected load: 400 V, 4.2 kW, 16 A
Machine width: 979 - 1.196 mm
Cooling: R 452 a
Machine height: 1.347 - 2.252 mm
Machine weight: 620 kg
Filling capacity: 110 l
Container size: 150 l
Undercarriage: 4 Castors
Continuous arm drive: 0 - 50 Rpm
Vacuum system: 0 - 90 %
