New Rühle Mixing and Tumbling Machines - Powerful mixing and intensive kneading with real HighTech

Description

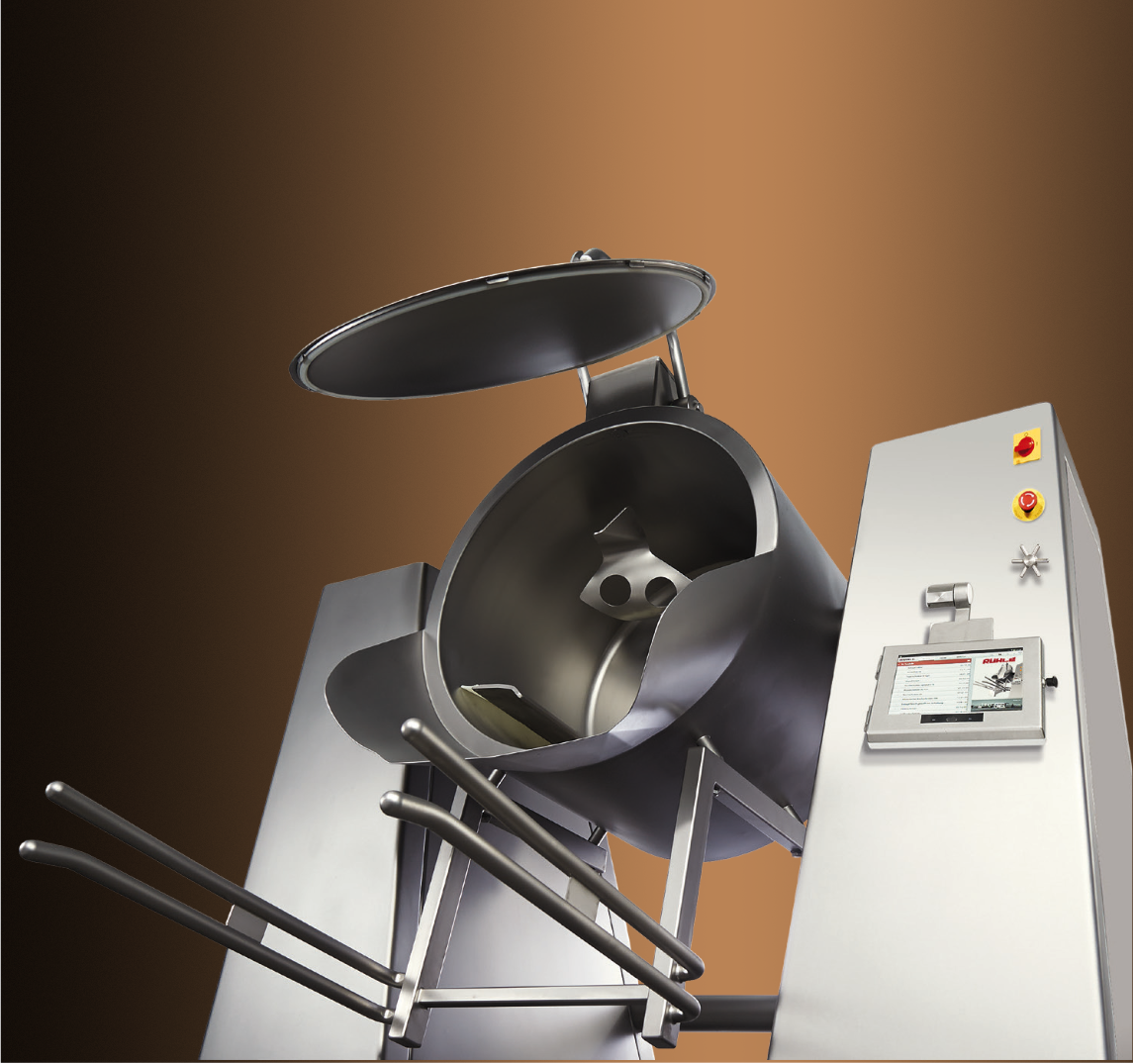

Mixing and kneading - The container can be tilted to different angles. The large - diameter container enables good rolling of the mixing product. The rotational speed of the mixing arm ranges from 0 to 30 rpm. An arm with a large working surface, but no edges or angles, does the rest.

Hard working and perfect scraping - The outer contour of the mixing arm is designed for gentle handling and processing of delicate products. A rotating scraper keeps all container surfaces perfectly clean. Everything remains within the mixture and nothing is left unprocessed.

Integrated feed system - Automatic, push - button positioning of the container and container lid enables integrated feeding with a 200 l standard trolley. Filling takes only a few seconds and emptying less than a minute. Varying the angle of the drum during the running of the program guarantees the optimum results.

Flexible programming - Twelve parameters are easily accessible at any stages. Recipes can be created intuitively and everyday tasks are easily facilitated by a smaller control interface. All made possible by perfect software and reliable hardware.

Automatic supply - A variety of applications yield better results when liquid seasoning is not added all at once but rather in several stages. To this end a suction valve is available that always dispenses the correct amount of liquid-whether manually or by fully automatic control.

Precise temperature control - The powerful cooling unit inserts the coolant directly into the perfectly insulated container. This enables very fast temperature regulation and very precise adaptation to all temperature requirements. Optionally, the cooling unit can also be run as a heat pump and supply heat up to 80 °C.

Specifications

Machine length: 1.907 mm
Connected load: 400 V, 6.4 kW, 16 A
Machine width: 1.256 - 2.789 mm
Cooling: R 452 a
Machine height: 1.922 - 2.585 mm
Machine weight: 1200 kg
Filling capacity: 220 l
Container size: 300 l
Continuous arm drive: 0 - 30 Rpm
Vacuum system: 0 - 90 %
