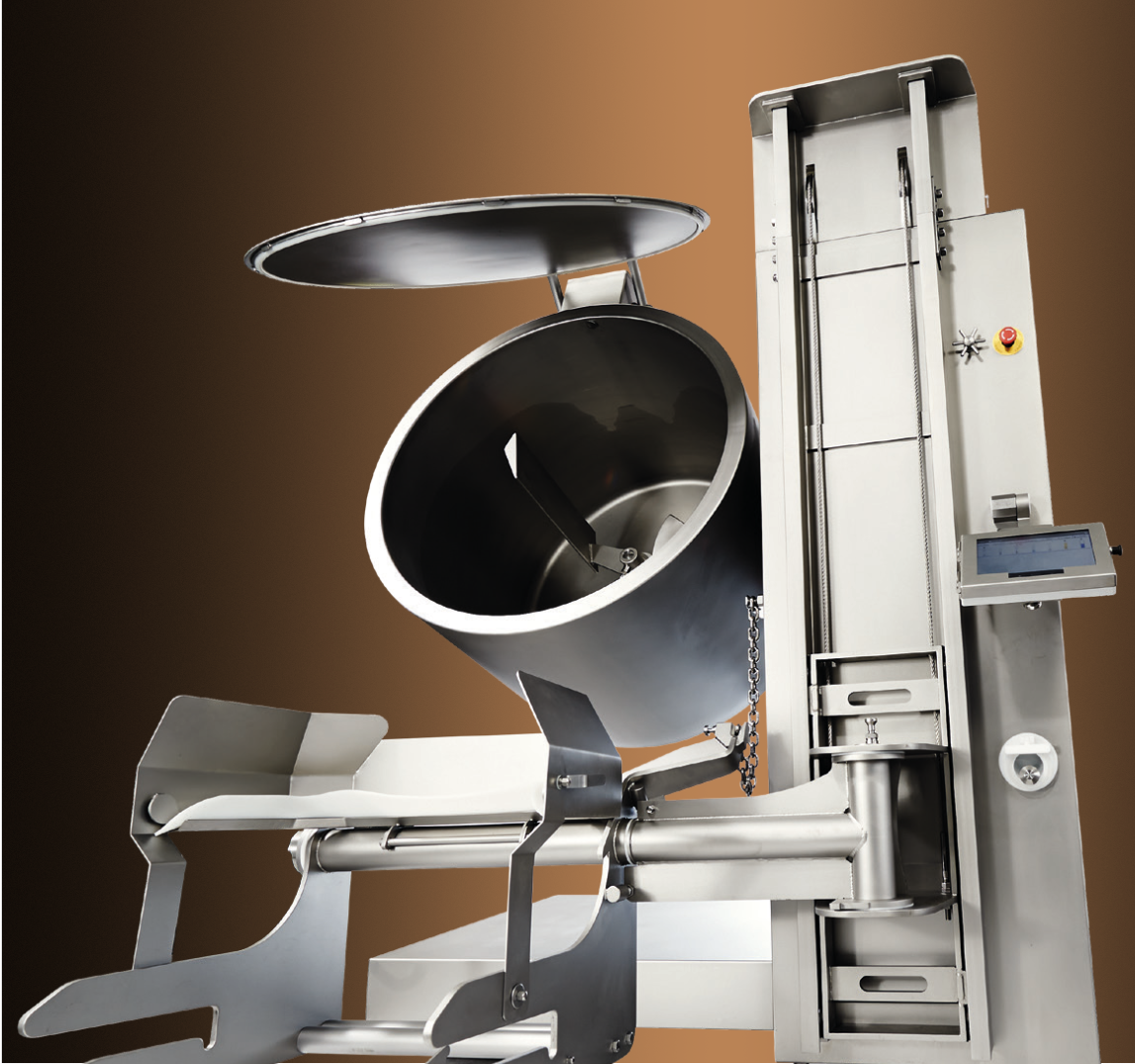

New Rühle Mixing and Tumbling Machines - Powerful mixing and intensive kneading with real HighTech

Description

Two counter-rotating mixing arms - The container can be tilted in different positions. The large – diameter container enables good rolling of the mixing product. The range of rotational speed from 0 to 25 rpm allows endless variations for each arm. The two – arm system provides air – pocket – free, uniform and very gentle processing of the mixing product.

Precise temperature control - The powerful cooling unit inserts the coolant directly into the perfectly insulated container. This enables very fast temperature regulation and very precise adaptation to all temperature requirements. Optionally, the cooling unit can also be run as a heat pump and supply heat up to 80 °C.

Networked tablet PC control - The Original MPR 500 can be controlled by any tablet or smartphone. Recipes can be created intuitively and everyday tasks are easily facilitated by a smaller control interface. Your own data can be saved reliably in a cloud, which can be reloaded at any time as well as the control app.

Integrated feed system - Automatic, push-button positioning of the container and container lid enables integrated feeding with a 200 l standard trolley. Filling takes only a few seconds and emptying less than a minute. Varying the angle of the drum during the running of the program guarantees the optimum results.

Adjustable vacuum system - Vacuum can be achieved rapidly or slowly depending on the product. Users can select a precise setting within the control range between 0 to 90 % vacuum. A supply pipe installed directly inside the container’s cooling jacket ensures that only chilled air enters the drum. As a result, frequent aeration has no effect on the container temperature.

Efficient scraper - The shape of the main arm is designed for handling and processing delicate products. A rotating scraper keeps the container surfaces perfectly clean. Nothing is left unprocessed: it all stays in the mixture.

Specifications

Machine length 1.881 - 2.846 mm
Connected load 400 V, 8.8 kW, 32 A
Machine width 1.793 - 3.119 mm
Cooling R 452 a
Machine height 2.310 - 3.141 mm
Machine weight 1.540 kg
Filling capacity 375 l
Container size 500 l
Continuous arm drive 0 - 25 Rpm
Vacuum system 0 - 90 %
