New Rühle Mixing and Tumbling Machines - Powerful mixing and intensive kneading with real HighTech

Description

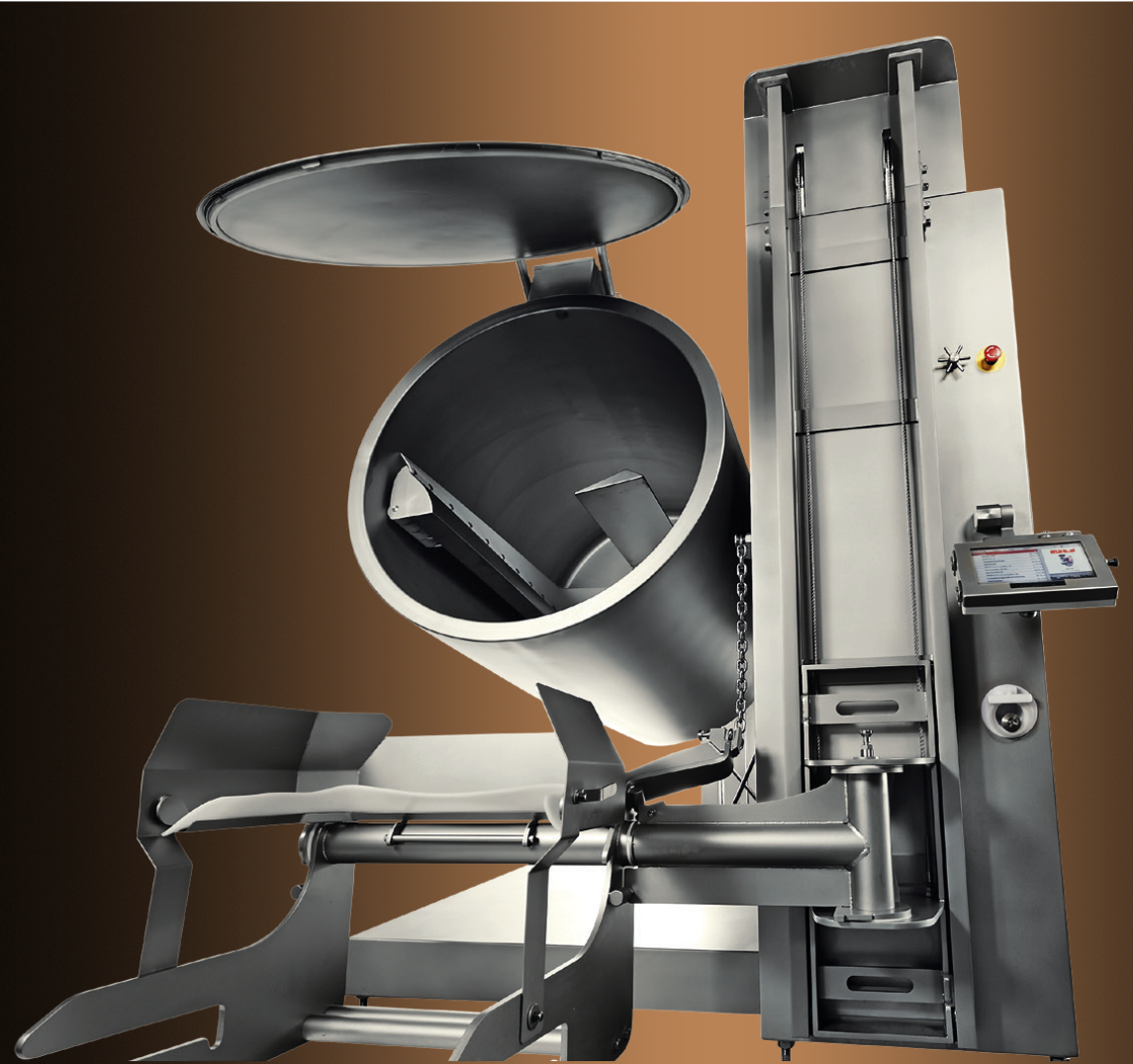

Two counter – rotating mixing arms - The container can be tilted in different positions. The large-diameter container enables good rolling of the mixing product. The range of rotational speed from 0 to 25 rpm allows endless variations for each arm. The two – arm system provides air-pocket-free, uniform and very gentle processing of the mixing product.

Efficient scraper - The shape of the main arm is designed for handling and processing delicate products. A rotating scraper keeps the container surfaces perfectly clean. Nothing is left unprocessed: it all stays in the mixture.

Integrated feed system - Automatic, push-button positioning of the container and container lid enables integrated feeding with a 200 l standard trolley. Filling takes only a few seconds and emptying less than a minute. Varying the angle of the drum during the running of the program guarantees the optimum results.

Precise temperature control - The powerful cooling unit inserts the coolant directly into the perfectly insulated container. This enables very fast temperature regulation and very precise adaptation to all temperature requirements. Optionally, the cooling unit can also be run as a heat pump and supply heat up to 80 °C.

Adjustable vacuum system - Vacuum can be achieved rapidly or slowly depending on the product. Users can select a precise setting within the control range between 0 to 90 % vacuum. A supply pipe installed directly inside the container’s cooling jacket ensures that only chilled air enters the drum. As a result, frequent aeration has no effect on the container temperature.

Networked tablet PC control - The Original MPR 900 can be controlled by any tablet or smartphone. Recipes can be created intuitively and everyday tasks are easily facilitated by a smaller control interface. Your own data can be saved reliably in a cloud, which can be reloaded at any time as well as the control app.

Specifications

Machine length: 1.881 - 2.844 mm
Connected load: 400 V, 11.9 kW, 32 A
Machine width: 2.153 - 3.219 mm
Cooling: R 452 a
Machine height: 2.444 - 3.229 mm
Machine weight: 1.920 kg
Filling capacity: 675 l
Container size: 900 l
Continuous arm drive: 0 - 25 Rpm
Vacuum system: 0 - 90 %
