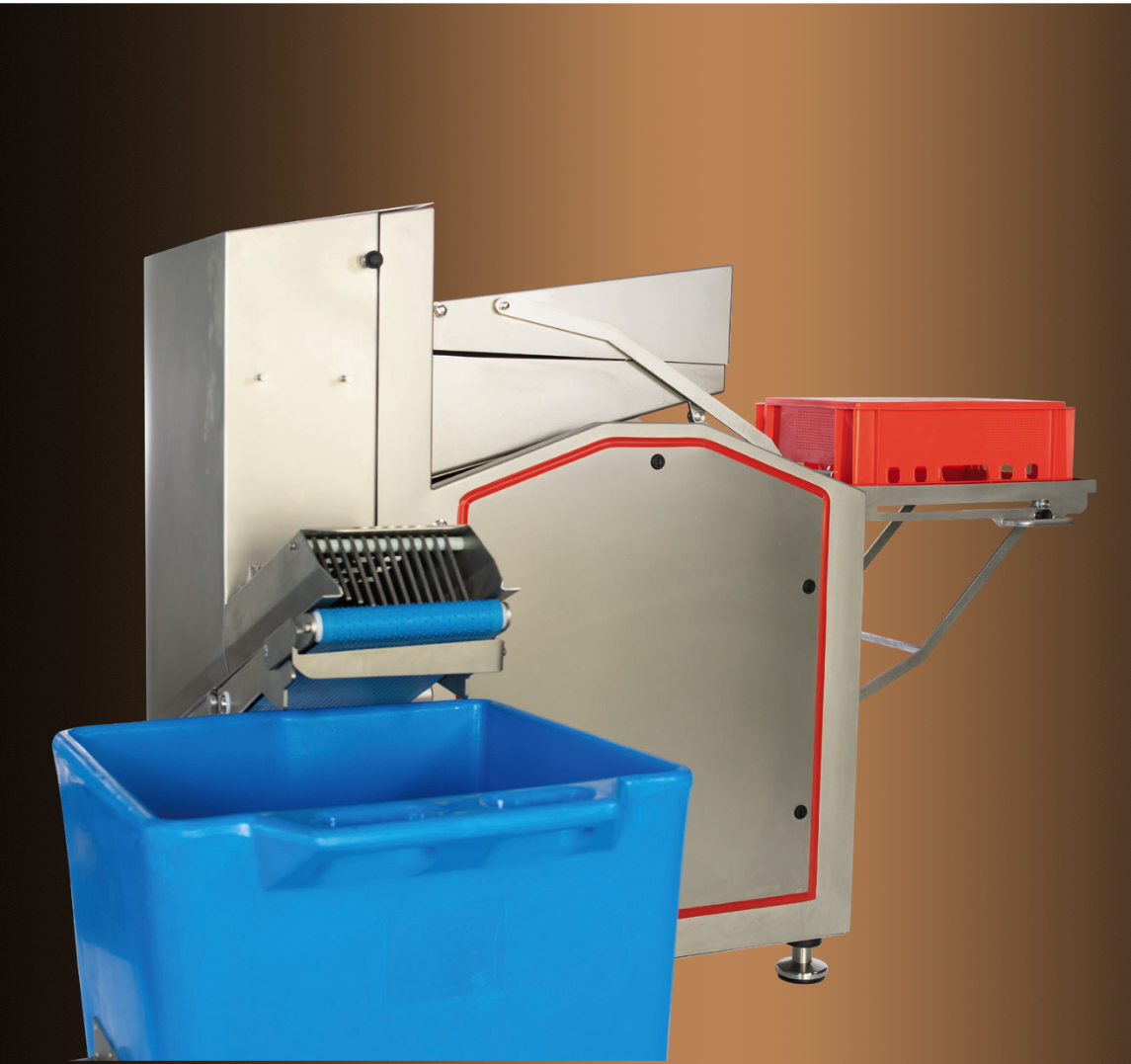

New Rühle Frozen Meat Cutters - Cut ice-cold

Description

Four strong vertical knives - The knife beam cuts slices of 30 mm thickness, 45 times per minute. Four vertical blades divide the slices into 90 mm wide pieces. The strong blades effortlessly separate the frozen blocks. Depending on the amount of water, the product can be cut from between – 40 °C to + 80 °C.

Easy and convenient loading - Loading is performed at a convenient height of 970 mm. From this point a rail track aids transport into the Original GR 50. There, the product is taken over by a lifting device. It positions the cutting block onto the ideal drop height for a safe sliding towards the knife.

Mechanically driven - The knife beam is positioned at a perfect angle to the approaching cutting block. Consequently, cutting is very precise and has a high degree of repetitive accuracy. Power transmission is provided by a low-maintenance mechanical gear motor that ensures years of reliable performance.

Material guide system - Bin contents are dumped out onto the flexible work surface. Often during production, the block ends up insecurely positioned. For this reason, a track turns the contents of the bin back onto their smooth bottom side. A vertical stop with an adjustable height can be set between 80 to 250 mm and guides the product securely and precisely.

Standard trolley level discharge conveyor belt - The end - product passes under the watchful eye of the operator at the proper working height. The space under the discharge conveyor belt is large enough to fit any size bin or a 200 l standard trolley. No more carrying of bins around. Assembly and leaning are easy tasks.

Safely, ergonomically and easily cleaned - Government-certified and designed in accordance with European standards, the Original GR 50 offers the highest possible safety features. Intuitive design ensures an easy operation. Daily cleaning is the easiest of tasks.

Specifications

Machine length: 1.331 - 2.566 mm
Connected load: 400 V, 5.7 kW, 16 A
Machine width: 891 - 2.180 mm
Performance: 2.500 kg / h
Machine height: 1.490 - 1.862 mm
Machine weight: 630 kg
Shaft length: 680 mm
Shaft width: 440 mm
Shaft passage height: 250 mm
Cutting dimensions: 30 x 90 x 250 mm max.
Sections: 45 per minute
Cutting temperature: -40 °C - +80 °C
