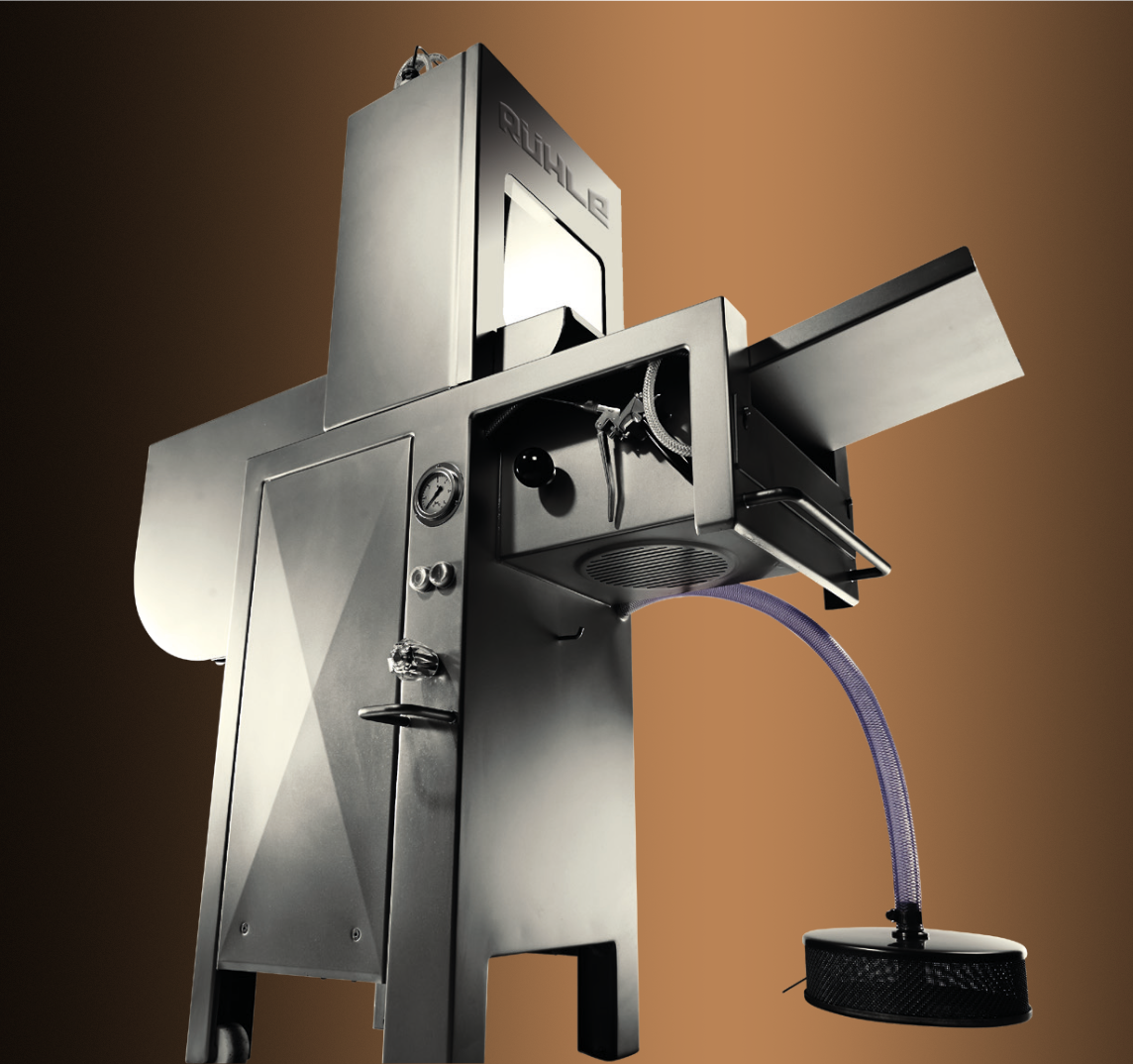

New Rühle Injecting Machines - HighTech injection for every need

Description

Low-wear needle system - Spring-loaded needles pierce through all types of rind and meat. Discolouring in the meat is thus prevented. The needles stop on contact with bone, which avoids bone splintering. The flexible needle bearing leaves enough space to glide gently alongside the bone. This prevents needle breakage.

Stable pressure system - The large-volume stainless steel pump ensures continuous wear - free operation. With a stable pressure of between 0.5 to 4.3 bar even viscous liquids can be injected reliably and repeatedly. Self - priming up to 10 metres and non sensitive to salt and ice offer greater safety and shorter circulation.

Softer with sharp angled blades - The softer works almost like a steaker with unique angled blades. After injection, they cut through the meat and fibres with surgical precision. This softens the fibre structure and activates actomyosin, the meat’s natural tenderiser. The meat becomes much more tender and as a result both protein extraction and liquid retention are optimised.

Stainless steel conveyor belt - The stable stainless steel conveyor belt gently secures the product and feeds it forward with millimetre precision, ensuring even injection. Stainless steel is resistant to salt, protein and other corrosive substances. Consequently, there is no unsanitary discolouration or pitting throughout the product.

Hand injector for oversize curing tasks - For injecting oversized products, the solution is a standard - built hand injector. The single - needle spray pistol provides enough manual pressure to process oversized products without having to invest in a second machine.

Fast cleaning - Three easy steps free up the working area and make it easily accessible from all sides. As the conveyor belt releases automatically, one step is all it takes to get the belt into a convenient cleaning position. The entire cleaning process takes no more than 5 minutes. Assembly and disassembly take only 20 seconds each.

Specifications

Machine length: 1.270 mm - 2250 mm
Connected load: 400 V, 1.8 kW, 16 A
Machine width: 500 mm
Performance: 1.000 kg / h
Machine height: 1.586 mm
Machine weight: 150 kg
Pressure: 0.5 - 4.3 bar
Feed inlet height: 180 mm
Rows of needles: 2
Belt forward feed: 25 mm
Injection rate: 35 per minute
Belt width: 270 mm
Injection volume: 5 - 40 %
