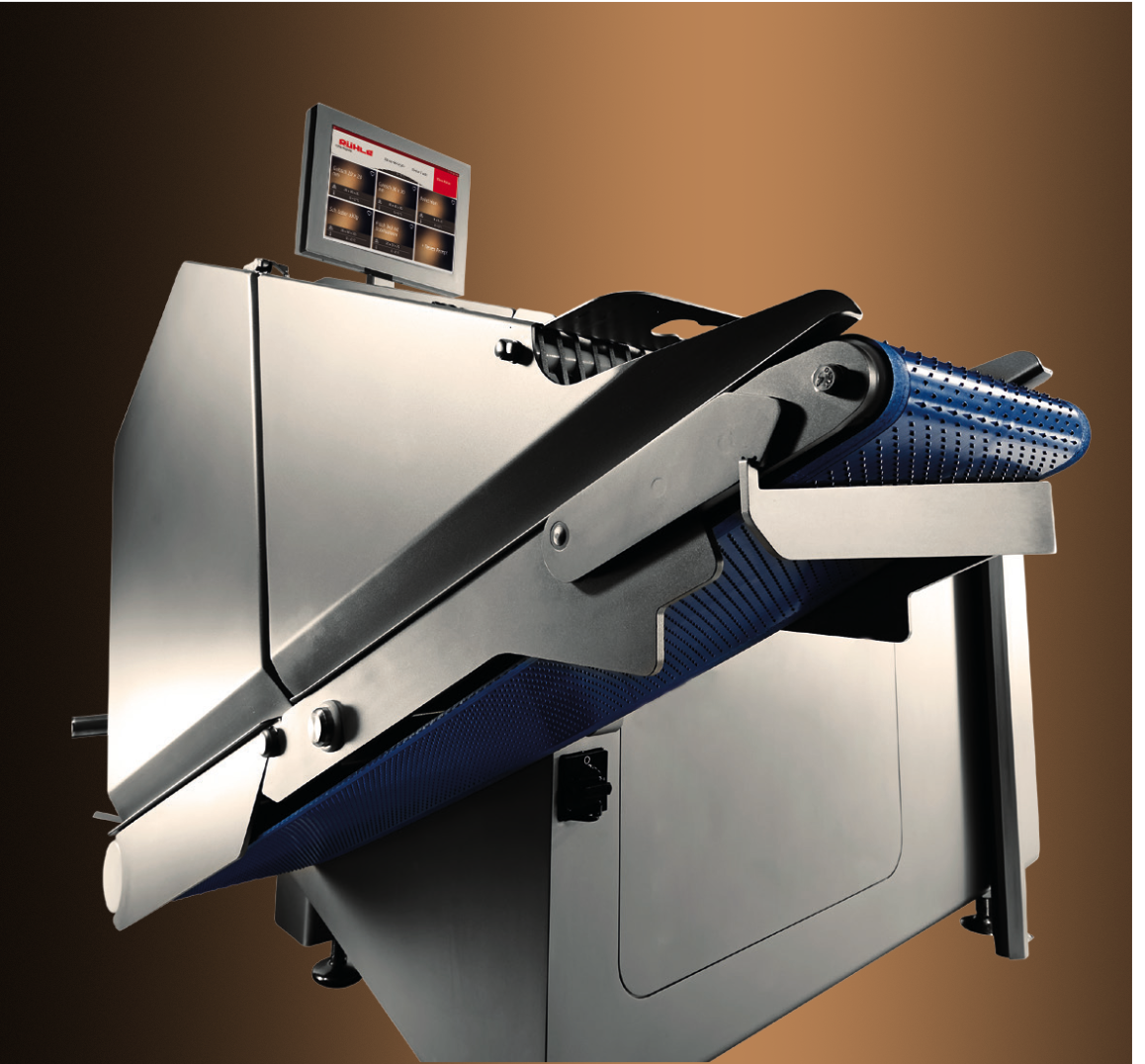

New Rühle Dicing Machines - Brilliant dicing results

Description

Push-button loading - A lift accepts a trolley loaded with a stack of bins and automatically delivers one bin after another onto the belt at operating height. As one bin empties, it takes only the touch of a button to bring up the next one. This saves substantial time and energy.

10 seconds changeover - Open the door, remove the grid, insert the next grid and continue cutting at a different size. You won’t find any faster or easier method. The easy handling enables the operator to cut something quickly. No need to remove the cutting knife and all grid components can be safely stowed inside the tool magazine.

Versatile grids - One grid consists of up to three parts that can quickly be combined to form additional grid sizes. It is possible to produce 13 different cutting sizes with one grid frame and 7 grid halves. The grids are mounted on wheel bearings, which makes for smooth running parts. Off – cuts left at the end of the cutting process can easily be removed.

Shaft compacting - The shaft is filled prior to cutting. The product is fed into the shaft and pushed down while being gently compacted from all sides. Once the shaft is closed, a finely adjustable pre-compacting function presses the plunger against the product and gently forms it into a cutting block. The result is perfectly shaped cubes.

Standard trolley level discharge conveyor belt - The end product passes under the watchful eye of the operator at the proper working height. The space under the discharge conveyor belt is large enough to fit any size bin or a 200 l standard trolley. No more carrying of bins around. Assembly and Cleaning are easy tasks.

Sophisticated blade - If the serrated blade was pulled out straight, the knife would double in length. Consequently, half the movement is enough to achieve perfect cutting results. Less movement means less friction. This in turns means less heat and a more accurately cut product.

Specifications

Machine length: 1.555 mm
Connected load: 400 V, 5.3 kW, 16 A
Machine width: 1.026 - 1.575 mm
Performance: max 3.000 kg / h
Machine height: 1.470 mm
Machine weight: 695 kg
Shaft length: 500 mm
Shaft width: 120 mm
Shaft passage height: 120 mm
Section length: 1 - 30 mm
Sections: 0 - 300 per minute
Cutting temperature: -5 °C - +80 °C
Standard grid sizes: 5, 10, 20, 60 / 6, 12, 24, 60 / 7, 15, 30, 60
