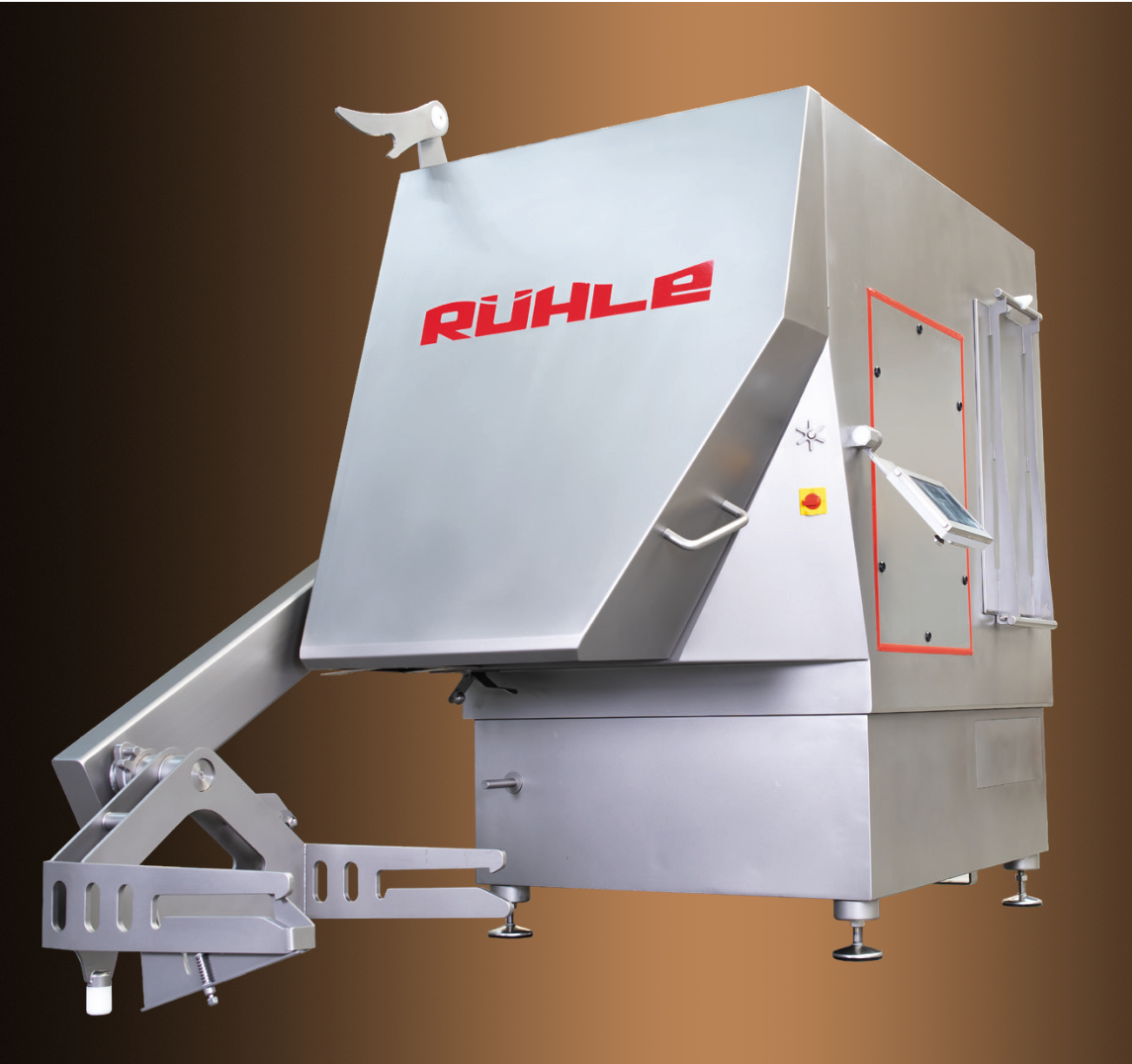

New Rühle Dicing Machines - Brilliant dicing results

Description

Pre-filling funnel with chamber loading system for optimum utilization of the shaft - Up to 200 kg of material is shaped inside the pre-filling funnel by means of a conveyor belt and blockage, so that the cutting chamber is always filled with up to 95% of its volume at every refill. This doubles the efficiency of the machine.

Globally networked via tablet control - The original SR 3 BiTurbo can be operated with any tablet or smartphone. Recipes can be created intuitively and daily work is greatly facilitated thanks to the reduced control surface. Your own data is securely stored in a cloud that can be reloaded at any time, just like the control app.

Multiple-knife function - Instead of a double or triple knife, the machine features a cutting blade drive that can produce 640 - or even 960 - cuts per minute instead of 320. Therefore, multiple knives become unnecessary.

Quick change system for the grid - Thanks to it, the grid can be changed in 10 seconds, a perfect cleaning can be carried out in 30 seconds and knives can be replaced in 1 minute. The modular system also allows to cut in other sizes. Because of the roller bearings, this grid operates with extremely low wear even under the toughest conditions.

Tool magazine for accessories of any kind - The tool magazine ensures a clear organization and a safe storage directly in the machine. The magazine door can also be turned into a practical worktable with a flick of the wrist. And for easy cleaning, grid and knife suspensions are available on the back of the machine.

Compacting system with angled shaft and multi-sided pre-compacting - The compacting system holds the material to be cut steadily together so that even-sized cubes are produced from the first to the last cut.

Specifications

Machine length: 2.800 mm - 3.440 mm
Connected load: 400 V, 14 kW, 32 A
Machine width: 1.494 - 1.600 mm
Performance: max 3.500 kg / h
Machine height: 2.115 mm - 3.145 mm
Machine weight: 2.000 kg
Shaft length: 530 mm
Shaft width: 120 mm
Shaft passage height: 120 mm
Section length: 0,5 - 30 mm
Sections: 0 - 320 per minute
Cutting temperature: -5 °C - +80 °C
Standard grid sizes: 5, 10, 20, 60 / 6, 12, 24, 60 / 7, 15, 30, 60
